SAMPSON NEO



Lanwood partitioning present Neo, a Unisex partition system with floor to ceiling fascia and divisions, while a panel above the door provides that full privacy that is so often specified. Neo utilises 13mm Laminex compact laminate with overlay doors. This suite is suitable for any areas where full privacy is included.

 PROTECGREENGAURD



SPECIFICATIONS

Surface.Material

13mm solid phenolic resin compact laminate with decorative colours to both faces

Substrate

13mm solid phenolic resin compact laminate Protec+ certified antimicrobial to JIS Z 2801:2000, proven to inhibit the growth of bacteria on surface up to 99% within 24 hours. Find out more about Protec+ here

Colours

Refer to our Colour selection or contact us for other colour options

Edges

All exposed edges are clashed using 2mm black PVC

Extrusions

Anodised aluminium as standard, powder coated aluminium as an option

Hardware

SCP Indicator bolt with emergency release function
SCP Spring loaded hinges with hold open action
SCP Integrated coat hook/doorstop
Aluminium floor channel

Maintenance

Apart from normal cleaning, no other maintenance is required. Oil can enhance black edging. Find out more here.

Installation

Lanwood partitions are supplied complete with hardware ready for installation by the contractor. As an alternative, installation can be arranged by Lanwood Partitioning. It is preferable to have all other finishing work completed before installation. Allowance should also be made at the framing stage for screw fixing of partitions to surrounding walls

Inclusions

All partitions are supplied with: Standard or sprung hinges • Privacy lock and indicator • Coat hooks • Anodised aluminium extrusions • Overlay door in either, open-in, open-out or sliding configurations

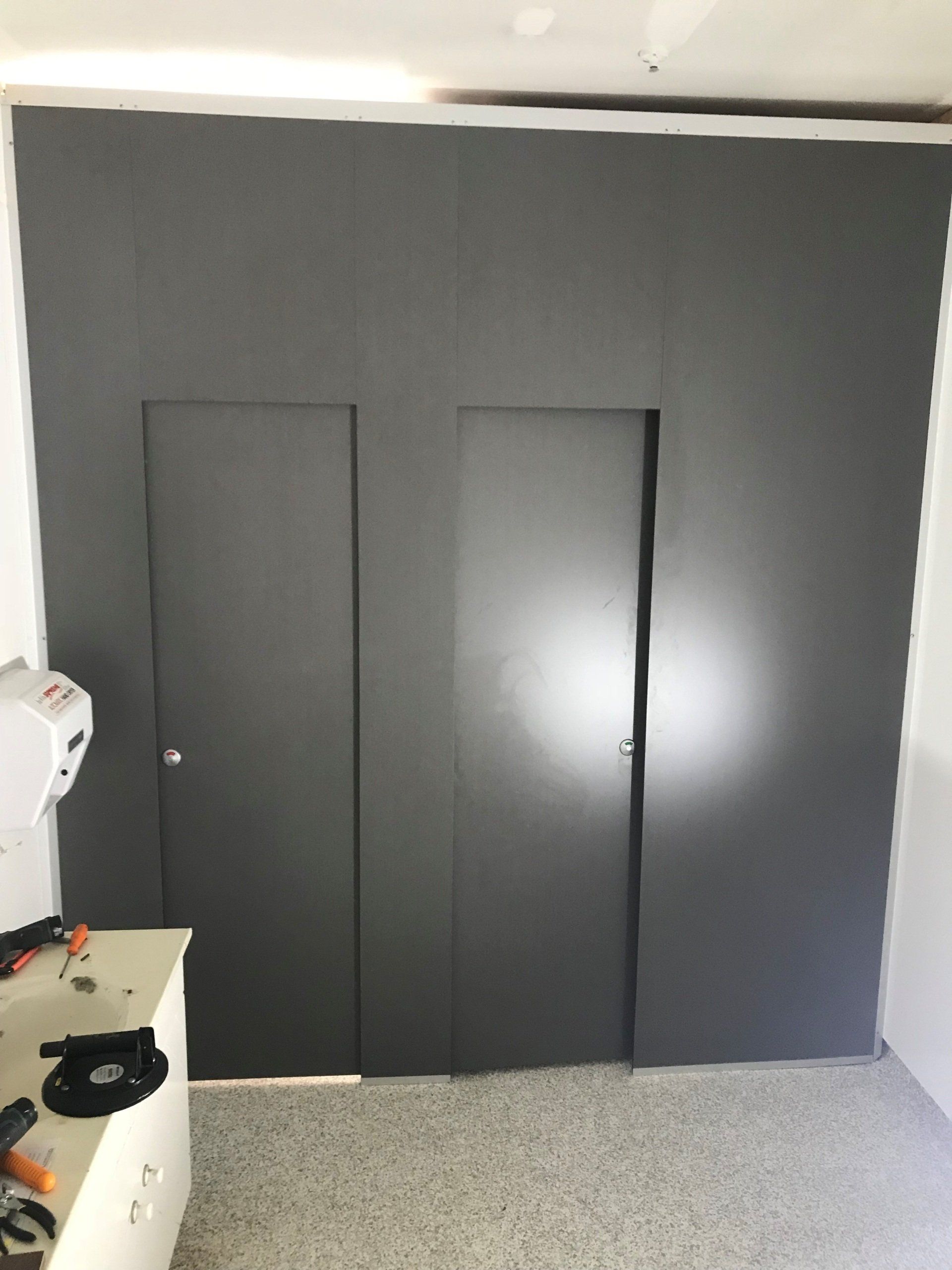

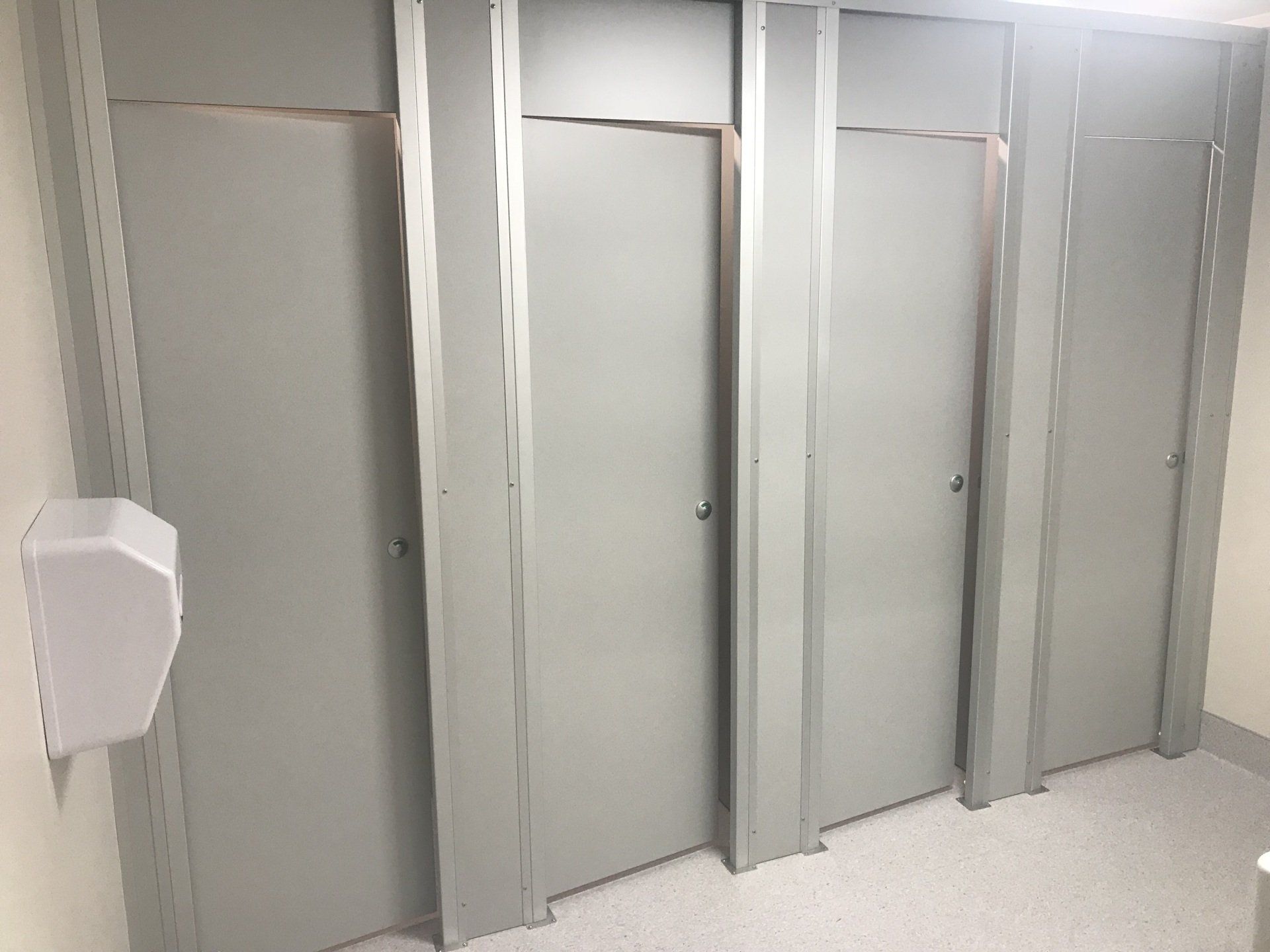

NEO22  SAMPSON NEO

                                                                                           'Neo Standard'                                                                               'Neo Plus' with 40x40 Posts

Download Brochure GalleryLaminex Colour Range

Masterspec logo 300x215 landscape

For further information, prices, design assistance, or special end-use requirements, please contact………
Lanwood Partitioning | P.O.Box 32 | Palmerston North 4440 | Phone (06) 357 4757 | Fax (06) 357 4732 | Email This email address is being protected from spambots. You need JavaScript enabled to view it.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
